HiLite® power 3D

Overview

Benefits

Specifications

Accessories

Downloads

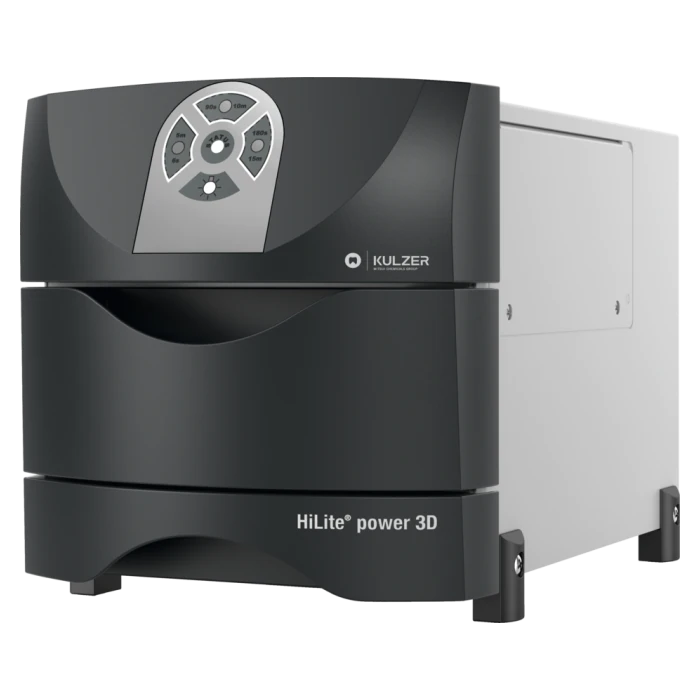

HiLite power 3D is our all-rounder light curing unit. Ideal for pre and final polymerising light-curing composites from the Signum, 3D print, Pala and many other product ranges

It convinces with an user-friendly design, a reliable and strong flashlamp and the choice of six light-curing times of 6, 90 and 180 seconds (for veneering material) and 5, 10 and 15 minutes (for 3D print material).

2nd time mode for composite AND 3D printed material
Easy operation – single button timer control
6 polymerization times (6, 90 and 180 seconds / 5, 10 and 15 minutes)
Blue process timer control LEDs
High-power flash bulb with long life performance
Efficient cooling management
Safety door lock
Worldwide voltage power supply
Wide range of light from 390 – 540 nm.


Technical specifications for HiLite power 3D:
Mains voltage:	100/115/230 V (via voltageselector switch)
Rated frequency:	50 – 60 Hz
Flash lamp power:	200 W
Fuse protection:	2x T6,3A
Power consumption:	325 VA
Dimensions (H x D x W):	230 x 345 x 225 mm
Weight:	app. 9.5 kg
Protection rating:	Class I
Power-on time:	80 %

Scope of supply:

HiLite power 3D accessories

HiLite Power 3D with flashlamp and chip card
Filter glass
Pot-shaped reflector
Object holder
Mains cable Europe, US/JP
2 x Model tray

Overview

HiLite power 3D is our all-rounder light curing unit. Ideal for pre and final polymerising light-curing composites from the Signum, 3D print, Pala and many other product ranges

It convinces with an user-friendly design, a reliable and strong flashlamp and the choice of six light-curing times of 6, 90 and 180 seconds (for veneering material) and 5, 10 and 15 minutes (for 3D print material).

Benefits

2nd time mode for composite AND 3D printed material
Easy operation – single button timer control
6 polymerization times (6, 90 and 180 seconds / 5, 10 and 15 minutes)
Blue process timer control LEDs
High-power flash bulb with long life performance
Efficient cooling management
Safety door lock
Worldwide voltage power supply
Wide range of light from 390 – 540 nm.

Specifications


Technical specifications for HiLite power 3D:
Mains voltage:	100/115/230 V (via voltageselector switch)
Rated frequency:	50 – 60 Hz
Flash lamp power:	200 W
Fuse protection:	2x T6,3A
Power consumption:	325 VA
Dimensions (H x D x W):	230 x 345 x 225 mm
Weight:	app. 9.5 kg
Protection rating:	Class I
Power-on time:	80 %

Accessories

Scope of supply:

HiLite power 3D accessories

HiLite Power 3D with flashlamp and chip card
Filter glass
Pot-shaped reflector
Object holder
Mains cable Europe, US/JP
2 x Model tray

Downloads

Catalog Prices

In stock

Only %1 left

HiLite power 3D is our high-performance light-polymerisation unit for safe and efficient polymerisation of all light-curing dental materials and 3D printing materials.

Reset filter

	Name	Type	Unit Price	Your Price	Qty
	HiLite® power 3D-High-performance light curing unit Ref66069514	type High-performance light curing unit	Unit Price $4,279.77	Your Price 0.0000 Sorry we were not able to display your customer-specific price. Please contact the seller, to get to know the customer specific price.	Crowd
